Topological Objects

The chart for this section of the API is displayed below. Click on an item in the chart to jump to that Help topic. To view the full system API chart, click here.

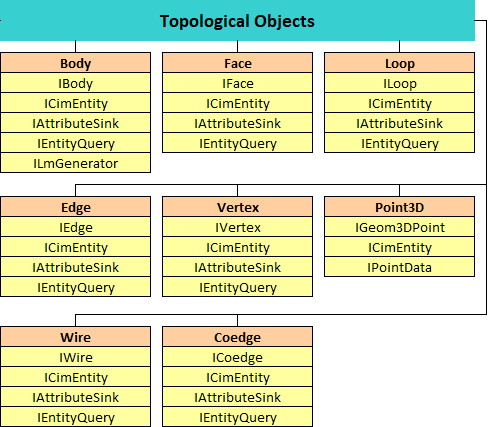

The following diagram illustrates the topological hierarchy.

Element	Definition
Body	The highest level of model object, It has set of connected faces and wires, which bounds the outside of a solid or an internal void.
Face	A connected portion of a surface bounded by a set of loops.
Loop	A connected circuit of coedges. Generally, loops are closed, having no actual start or end point.
Wire	A connected set of edges that are not attached to a face.
Coedge	Represents the use of an edge by a face or wire. Coedge can be tolerant, that exists only on a tolerant edge.
Edge	A connected portion of a curve bounded by vertices. Edge can be a a tolerant edge, that represents an edge that does not lie within the system's positional tolerance of a face.
Vertex	A boundary of an edge. A Vertex corresponds to a point in 3D space. Vertex can be a tolerant that represents a vertex that does not lie within the system's positional tolerance of an edge.
